Monel 400 Bolts
Buy Monel 400 bolts, stud bolts, nuts and other fasteners from Boltport, an Indian manufacturer & supplier of Monel 400 bolting materials to ASTM B164, B564, F467, F468, UNS N06625, DIN EN 2.4856 and BS 3076 NA13 specifications with properties adequate for chemical processing, oil refining, marine and sea-water based application industries. Monel 400 bolts are best suited for applications involving seawater attacks such in offshore or onshore platforms. Monel 400 bolts are also used for processes involving chemicals such as hydrofluoric, hydrochloric, and sulphuric acids along with many salt and caustic solutions due to its unique acid resistant properties.

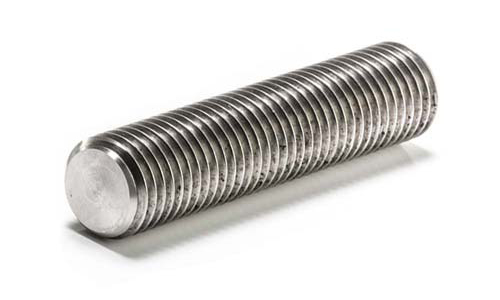

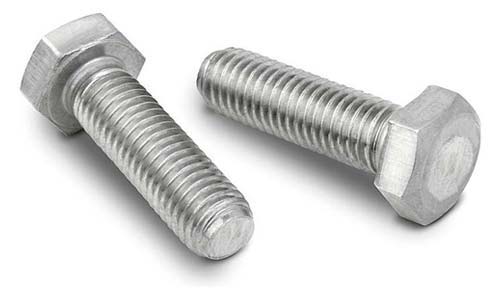

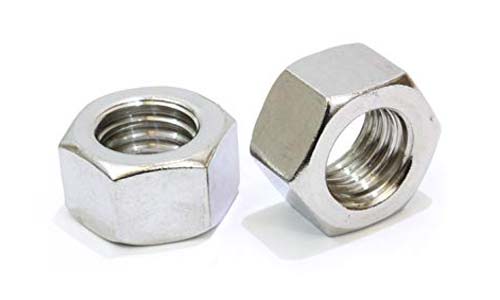

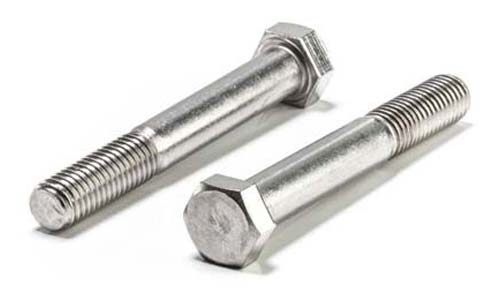

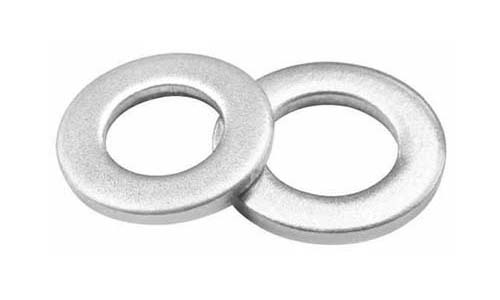

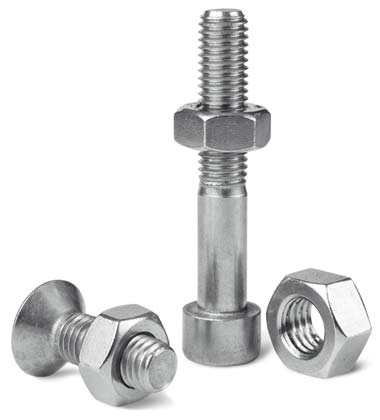

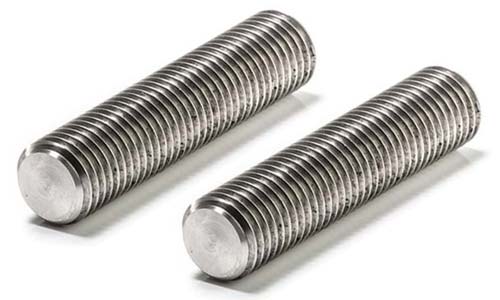

Boltport fasteners offer Monel 400 bolts and nuts with standard and custom manufacturing to your specification. We covers Monel Alloy 400 hex bolts, studs, stud bolts, hex nuts, washers, threaded rod and other fastener in metric and inch sizes with coarse, fine and extra fine threads to ASME, UN, BS, ISO and DIN standards.

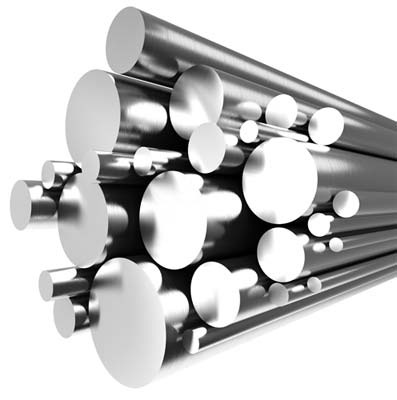

Monel 400 Bolting Material Specifications
- ASTM B164 / ASME SB164
- ASTM B127 / ASME SB127
- ASTM B564 / ASME SB564
- ASTM F467 / ASTM F467M
- ASTM F468 / ASTM F468M
- BS 3076 NA13
- AMS 4675
- DIN 17752 / DIN 17754
- Alloy 400
- UNS N04400
- DIN / EN / Werkstoff No. 2.4360
Monel 400 Bolt Properties
| Chemical Composition | |||||||
|---|---|---|---|---|---|---|---|
| Elements | Ni + Co | Cu | Fe | Mn | Si | C | S |
| Min % | 63.00 | 28.00 | - | - | - | - | - |
| Max % | - | 34.00 | 2.500 | 2.000 | 0.500 | 0.300 | 0.024 |
| Mechanical Properties | |||
|---|---|---|---|
| Temperature (°F) | Ultimate Tensile (ksi) | Yield Strength at 0.2% Offset (ksi) | Elongation % |
| Room Temp. | 83 | 45 | 32 |
| 200 | 79 | 43 | 30 |
| 400 | 77 | 42 | 27 |
| 600 | 80 | 46 | 27 |
| 800 | 68 | 48 | 26 |
| 1000 | 54 | 40 | 24 |
Monel 400 Bolting Benefits
- Excellent resistance to sea-water and steam at high temperature
- Resistant to stress corrosion cracking and pitting in fresh and industrial waters
- Highly resistant to hydrofluoric and hydrochloric acid in all concentration up to the boiling temperature
- Maintains good mechanical properties from sub-zero temperatures up to 1020ºF
- Excellent resistance to salts and caustic solutions
Monel 400 Bolting Applications

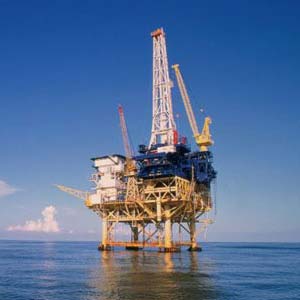

- Marine engineering
- Chemical and hydrocarbon processing units
- Boiler & pressure vessels
- Oil refining & processing

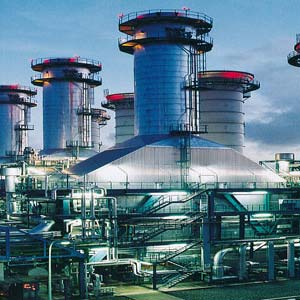

- Nuclear power plants
